技術規格

Description

單位

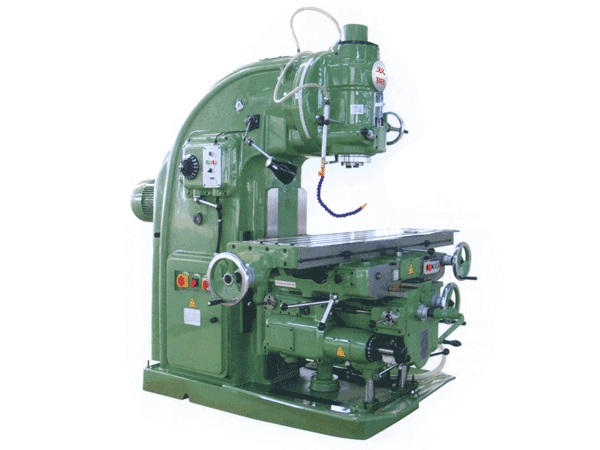

X5040

工作臺面積

Working surface

mm

400×1600

承載重量

Maximal load

kg

800

T型槽數

No.of T-slots

3

T型槽寬

Width of T-slots

mm

18

T型槽間距

Space between T-slots

mm

90

回轉角度

Maximum swivel

±45°

X向（工作臺縱向）手動/機動

Logitudinal

mm

900/880

Y向（滑座橫向）手動/機動

Cross

mm

315/300

Z向（升降臺垂向）手動/機動

Vertical

mm

385/365

錐度

Taper

(ISO)

7:24 No.50

轉速范圍

Speed range

mm/min

30-1500

轉速級數

Speed step

18

主軸端面至工作臺面距離小/大

Distance between spindle nose and table surface

mm

30/500

床身直導軌面至工作臺中線最大距離

Distance between vertical guide-way and certer line of the spindle

mm

450

切削進給速度

Cutting feed speed

mm/min

x:19-950,y:12.6-634,z:6.3-317

快速移動速度

Rapid feed speed

mm/min

x:2300,y:1540,z:770

進給級數

Feed steps

18

主軸電機功率

Power of spindle motor

kw

11

進給電機功率

Power of feed motpr

kw

3

機床外形尺寸

Overall dimesions of machine

mm

2556×2159×2298

機床重量

Net/Gross weight

kg

4250
